4th Axis (A or B) for CNC Router

Music center with Touchscreen based on Raspberry PI, HiFiBerry and Volumio

5 Axis enhancement for my CNC Machine

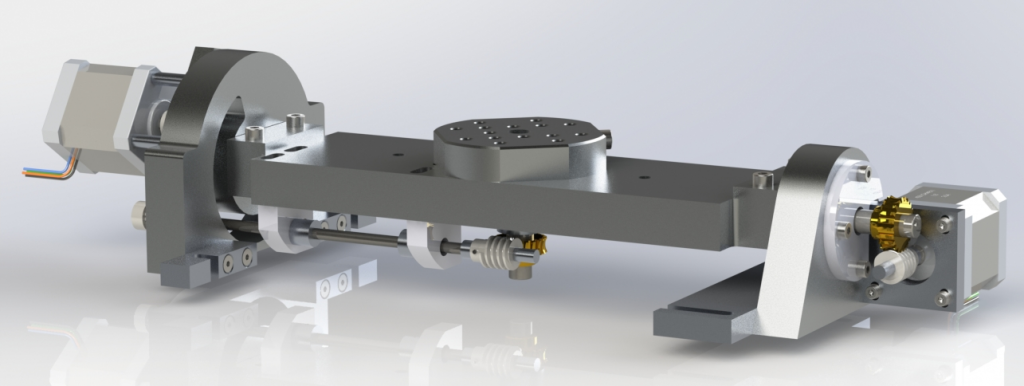

2 Rotary Axes A or B and C in  a Table / Table Configuration

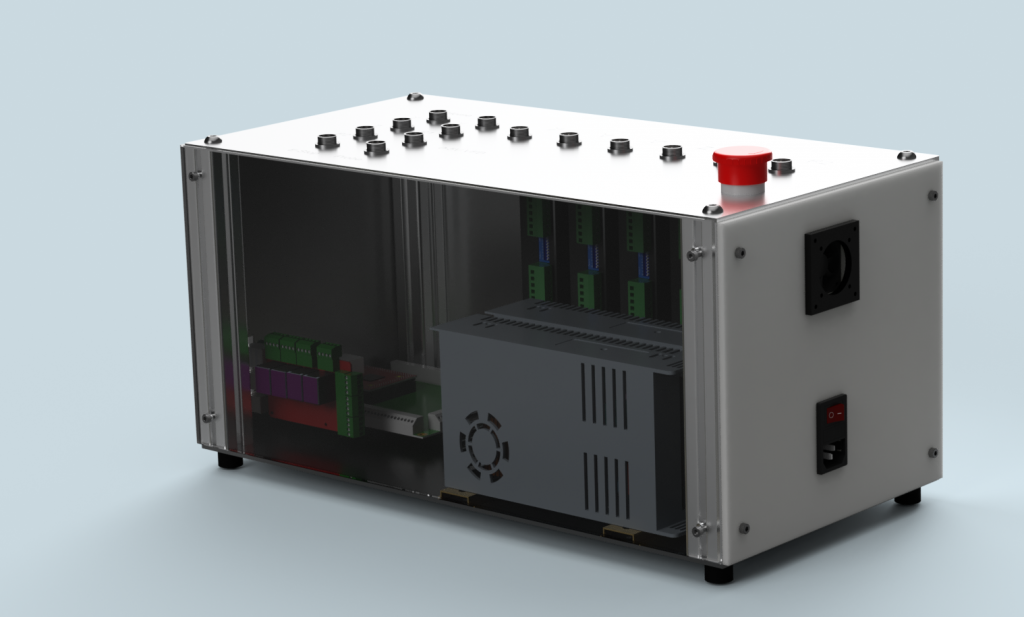

Generic 6 Axis CNC Controller

Up to 3 Linear-axis and 3 Rotational Axis. Pinout see UB1 and UC300ETH documentation.

UC300 plugged into UB1 driving the Stepper Drivers and receiving the Limit and other Switches.

Tested with UCCNC Controller Software

Requires a PC to install the controller Software, connected via Crossover LAN CableAlternative

Option:Raspberry 3 on board with bCNC directly installed, driving the Linear-axis (XYZ) through the Protoneer Raspberry CNC Hat. In this configuration, the PC, UC300ETH and UB1 are not required but the Limit are 4 Linear-axis

Generic1_2018-Mar-29_07-22-23AM-000_CustomizedView9538358398_png

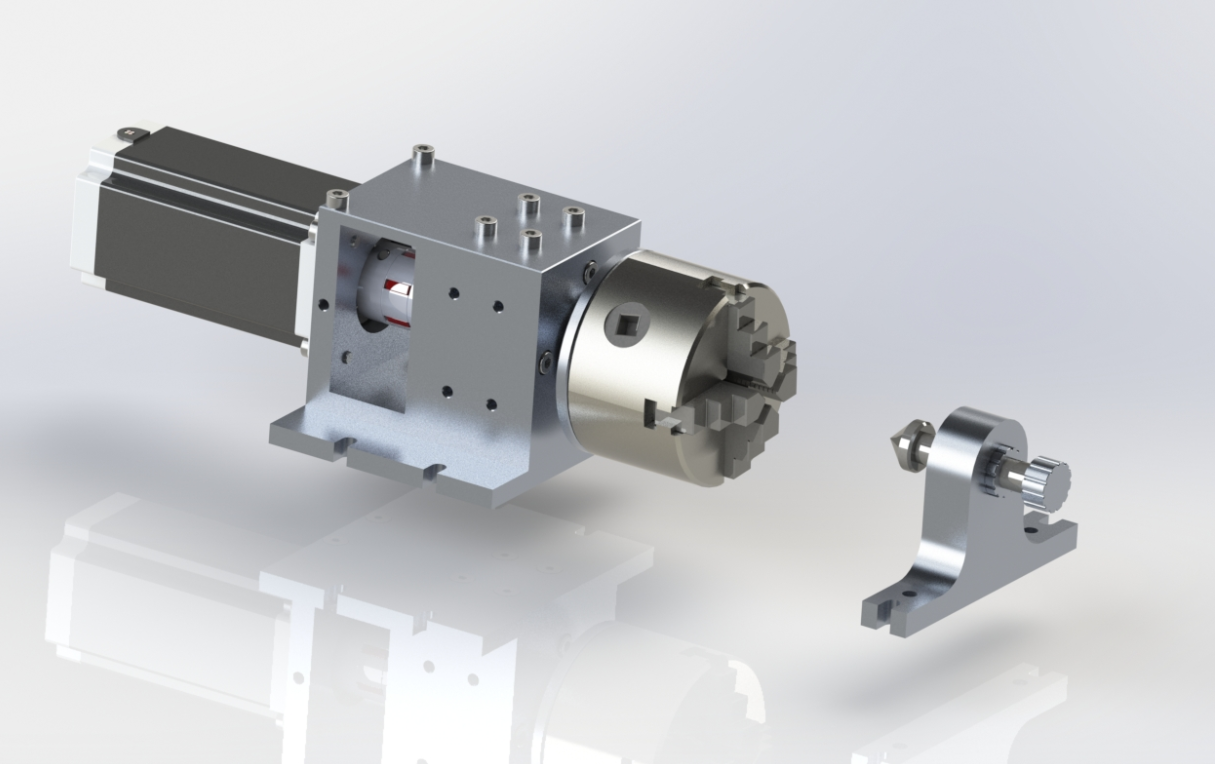

Micro Dividing Head

Golf Trolley

"Reduzed to the Max"

6.5 Kg , Fits in Travelbag

GrundTyp2

MyCNC V4

Completet

Latest Version, more stable and rigid

New CNC Platform Version. Improved stability and precision (0.02mm).

Working Area 750 x 550 x 80 mm. Stronger NEMA 23 Stepper Motors. Raspberry based Electronics.

Completed! The "real thing" is tested and works.

w400px

CNC Platform

Completet

Design with many printed parts

New CNC Platform Version. Improved stability and precision (0.02mm). Lots of printable parts. Total cost in the range of 1'000 $. Work area 350x350x100mm.

Completed! The "real thing" is tested and works.

Final

Raspberry PI based Media Center.  Connected HiFi Berry Digi+, operated via Web Interface from any device.

Completed! The "real thing" is tested and works.

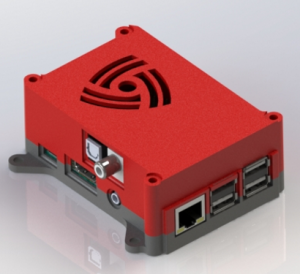

iMediaCenter
Platform to build 3D CNC Machines (Printer, Milling Machine, ... name it ...). The designed does not depend on the size of the machine!

iAnlageKomplett
